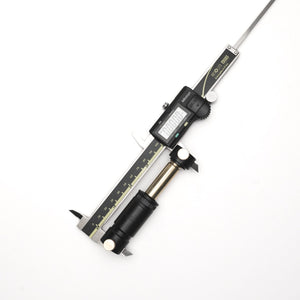

THESE KITS WERE DESIGNED TO WORK WITH MITUTOYO CALIPERS, BUT DO NOT INCLUDE THEM. OTHER CALIPERS MAY FIT, BUT ARE NOT GUARANTEED.

THE JAW THICKNESS NEEDS TO BE 3.45mm OR LESS.

Includes all sizes of headspace gauges, all bullet ogive gauges, and the gauge body, anvil and storage tray, not the heavy steel stand.

As long as any of us have been reloading, we have been using comparators. These are simple items meant to let us measure seating depth and headspace between cases. If you reload alone, always use the same components and calibers, and don’t tinker around, these are a solid option.

Really though, that’s not us. We like to use different components, we like to compare, and we want to know that the measurements we are taking are a little more than relative. This is why we are making our ZERO measurement gauges.

GENERAL CONSTRUCTION

To make these measurement gauges, they all needed to be the same. Exactly the same. And they had to stay that way. All of these parts are made on our world-class DMG Mori lathes, from American steel, cut with reamers for consistency, and then nitrided to help them last a lifetime.

HEADSPACE GAUGES

Headspace gauges don’t need the be complicated, they just need to be correct, and exceedingly consistent. This led us to a traditional datum-style gauge – as we believe it provides the most true measurement – cut with a reamer to keep our diameter, face, and radius as consistent as possible. Again, this is in an effort to allow you to compare your measurements with someone from North Dakota or Nevada or the Netherlands, knowing that the numbers on your caliper mean something.

Included Sizes: .330, .350, .375, .400, .420, Rimfire

BULLET OGIVE

This one is a little more intricate. While most ogive comparators work on a standard datum measurement, like our headspace gauges, we thought there was a much more appropriate way to measure the ogive. We have designed and are using custom tooling that allows us to replicate the lead area of your barrel’s chamber (if it has the standard 1.5* lead). The goal here is to allow you to measure seating depth and jump the only way that it matters, and that’s relative to your chamber. This will reduce the large swings in gauge readings from one projectile class to another, allowing you to see what really matters.

Included Bullet Calibers: 22cal, 6mm, 6.5mm, 7mm, 30cal, 338cal

HEIGHT GAUGE (OPTIONAL EXTRA)

When building this kit, we also decided we wanted you to have the option to use it like a tool we use every day in the shop – a height gauge. This heavy steel base, with rubber bottom, will keep your measuring tool in place, clicking the tool in with magnets, and add to the flow of your reloading QC process. NOTE: This base is a separate item, and is not included in the kit unless specifically called out.
